Universal Solderless Bread Board Transparent Full Nickel Plating 165x55x10 mm

Name: Universal Solderless Bread Board Transparent Full Nickel Plating 165x55x10 mm
Brand: ZHONGYI
Price: 1 USD

Buy cheap Universal Solderless Bread Board Transparent Full Nickel Plating 165x55x10 mm product

Brand Name : ZHONGYI

Model Number : ZYJ-102

Certification : SGS

Place of Origin : Zhejiang, China (Mainland)

MOQ : 50 pcs

Price : please contact me

Payment Terms : paypal, WU, TT, Western Union

Supply Ability : 10000 pcs per day

Delivery Time : 1 day after payment

Packaging Details : 500 pcs packed into a carton"

Dielectric Withstanding Voltage : 500V AC/60s.

D/C : Producing atfer placing an order

Insulation resistance : 1000MΩ Min at DC 500V

Operating Temperature : -20~85℃

Package : blister package

Housing color : white

Contact plating : Full nickel or no plating

Contact Now

Universal Solderless Bread Board Transparent Full Nickel Plating 165x55x10 mm

Place of Origin: Zhejiang, China (Mainland)
Brand Name: ZHONGYI
Model Number: ZYJ-102
Accepts a variety of wrie sizes(AWG:20-29)
Color: transparent
Characteristic: solderless type
Environmental Characteristic: no pollution
Package: blister package

1. 110V or 220V AC input range selectable by switch
2. Dielectric withstanding voltage: AC 500V for 1 minute
3. DC adjustment range: ±10% rated output voltage
4. Overload protection: 125%~165% shut off, AC recycle to re-start
5. Over voltage proection: 112%~135% rated output
6. Fixed switching frequency at 25KHz
7. Contact resistance: 100mΩ max
8. Insulator resistance: 1000MΩmin. @DC 500V

9. Operating temperature: -20°c~+80°c
10. Plug times: ≥10000 times
11. 100% full load bum-in test

Accept transistors, diodes, LEDS, resistors, capacitors and virtually all types of components
Twin adhesive back, could be fix and remove to any position easily
Protection: Short circuit / Overload / Over voltage
Phosphor bronze nickel plated spring clips
Cooling by free air convection
All material Rohs compliance
Low cost, high reliability
Completely reusable

Universal Solderless Bread Board Transparent Full Nickel Plating 165x55x10 mm

Product Tags:

universal circuit board

universal printed circuit board

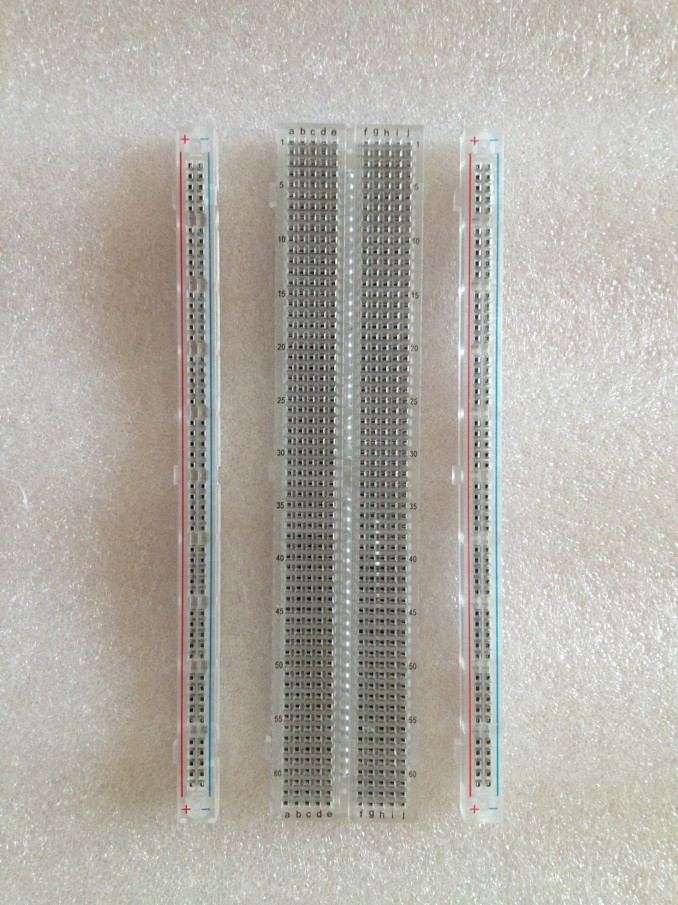

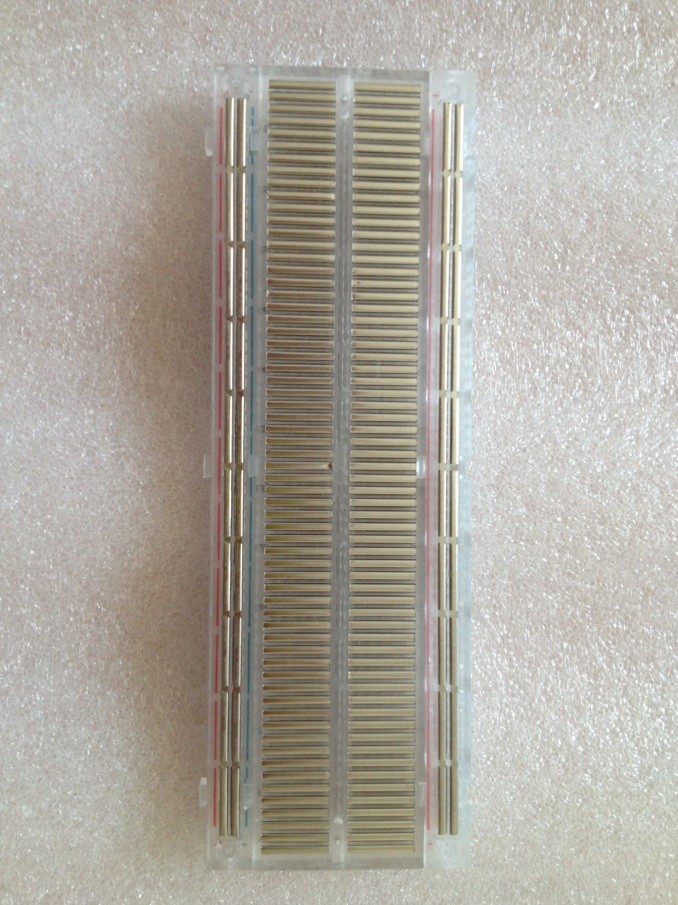

Universal Solderless Bread Board Transparent Full Nickel Plating 165x55x10 mm Images
